WE GUARANTEE THE QUALITY OF PRESS PARTS AND SERVICE

CHIBA MANUFACTURING

We have machines made in japan that cover all processes with high precision and reliability for making die and mass production.

Also, we guarantee the quality of press parts (products) and service (delivery) by standard measuring instruments and ISO 9001 : 2015 and IATF 16949 systems.

MACHINE LIST

MACHINE / EQUIPMENT

BRAND

MODEL

QUANTITY

PRESS

AIDA

NS2-3000

2

PRESS

AIDA

NS2-1600

1

PRESS

AIDA

NC1-2000

1

PRESS

AIDA

DSF-C1-1500A

1

PRESS

AIDA

NC1-800

1

PRESS

AIDA

NS1-800

2

PRESS

AIDA

NC1-350

1

PRESS

YAMADA DOBBY

MXM-30

1

PRESS

YAMADA DOBBY

20 AH

1

WIRE CUT

SODICK

VZ500L, VQ600L

2

SMALL HOLE

DRILLING EDM

SODICK

K14C

1

GRINDING

OKAMOTO

UNEAR3508

1

GRINDING

OKAMOTO

ACC64DX

1

LATHE

DENVER

LG-460AX750

1

MILLING

QUICK JET

QJM-A2 40#

1

MACHINING CENTER

OKK

VB53

1

CMM

MITUTOYO

CRYSTA-PLUS M574

1

QUICK VISION (QV)

MITUTOYO

QV404

1

CONTOUR MEASURING INSTRUMENTS

MITUTOYO

CV-4500 S4 E MM

1

HYDROCARBON CLEANING

MC

AQUA

-

1

SPOT WELDING MACHINE

DENGENSHA

-

1

AUTO CAD

-

-

2

3D CAD / CAM TOP SOLID

TOP SOLID

-

1

DIE MAKING MACHINE

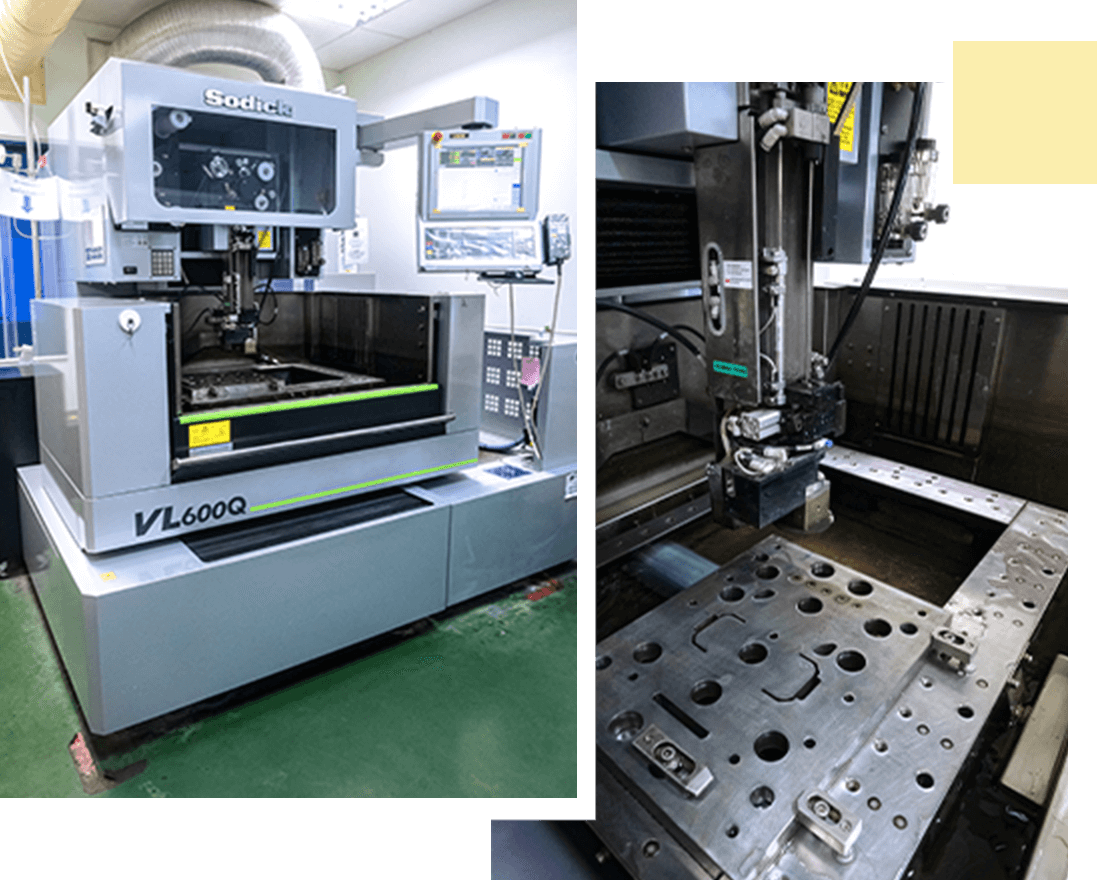

SODICK CNC WIRE-CUT ELECTRICAL DISCHARGE MACHINE

Specification

Table travel : X-Axis = 600 mm, Y-Axis = 400 mm, Z-Axis = 270 mm

Maximum wight of work piece : 850 kg.

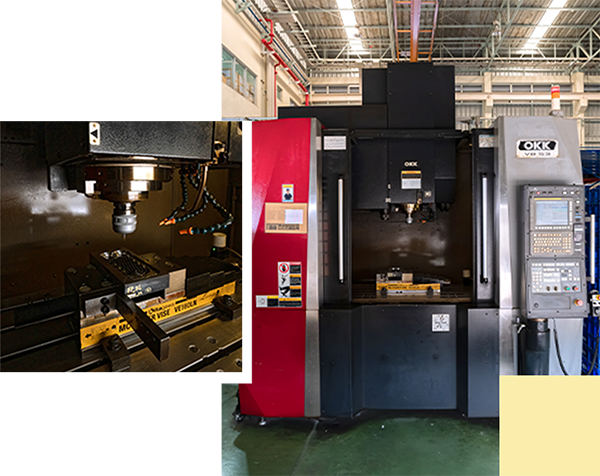

OKK VB53 WITH FANUC VERTICAL MACHINING CENTER

Advanced & High-Quality Part, Die & Mold Machining Center

Specification

Travel on XYZ Axis : X-Axis = 1050 mm , Y-Axis = 530 mm, Z-Axis = 510 mm

Table work surface : X,Y Direction = 1260 mm

Spindle speed : 100 ~ 20000 min-1

Number of stored tool : 30 tool

PRESS MACHINE

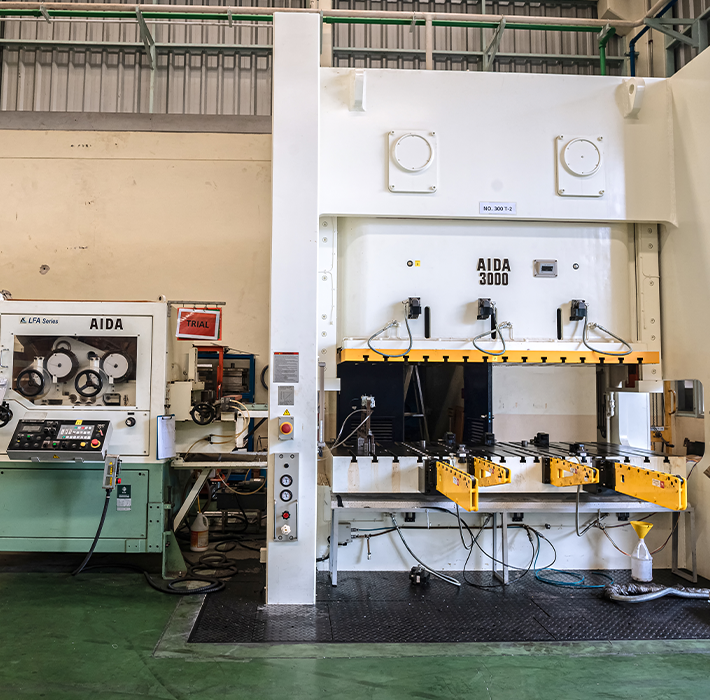

300 TON HY-FLEX PRESS

Maker : AIDA

High productivity press machine by progressive die

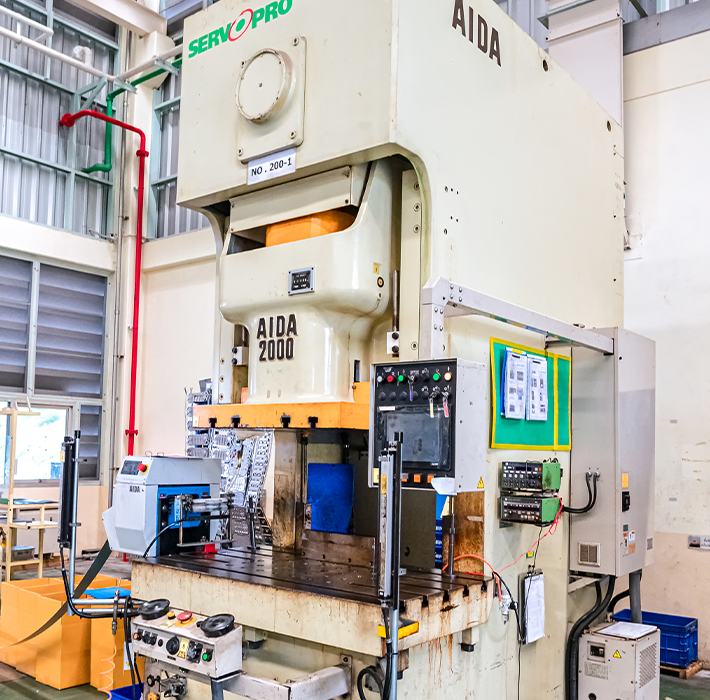

AIDA 200 TON SERVO PRESS

Maker : AIDA

High productivity press machine (DIE CUSHION)

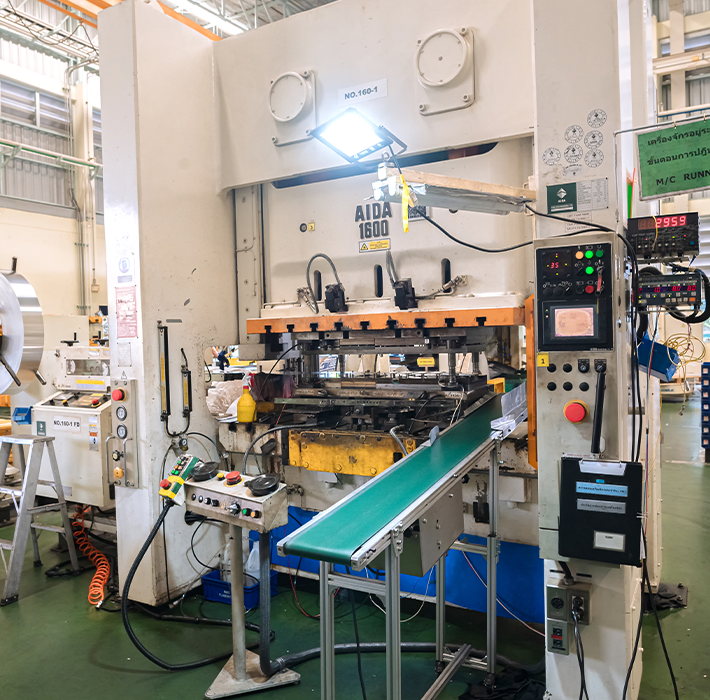

AIDA 160 TON HY-FLEX PRESS

Maker : AIDA

Specialized press processing by two consecutive press machine

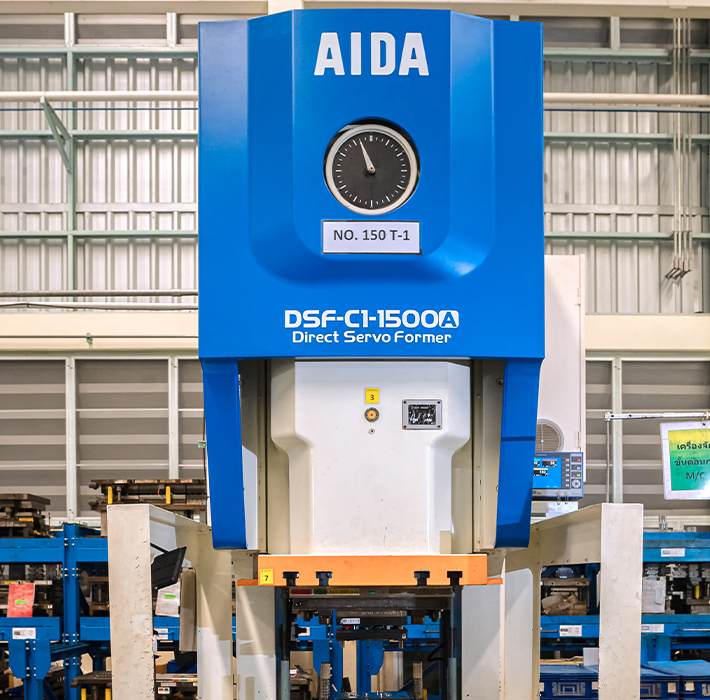

AIDA 150 TON SERVO PRESS (DIRECT DRIVE SERVO MOTOR)

Maker : AIDA

High productivity press machine (SWING ARM)

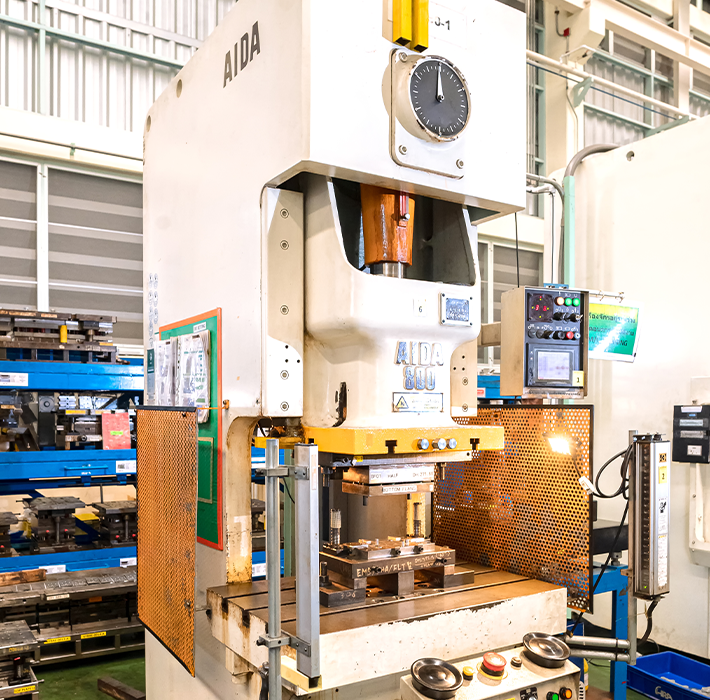

AIDA 80 TON

Maker : AIDA

(DIE CUSHION)

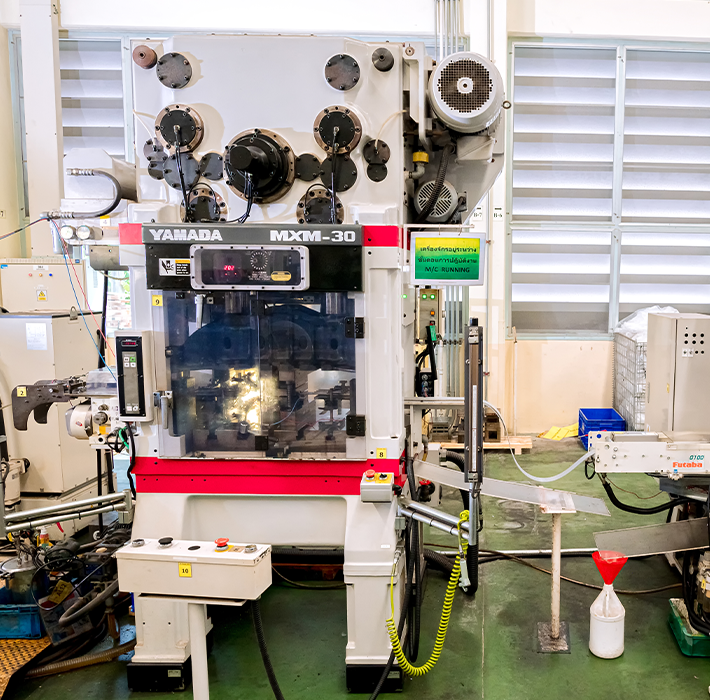

MXM30 AND 20AH

Maker : YAMADA DOBBY

HIGH SPEED PRESS

Specialized press processing by two consecutive press machine

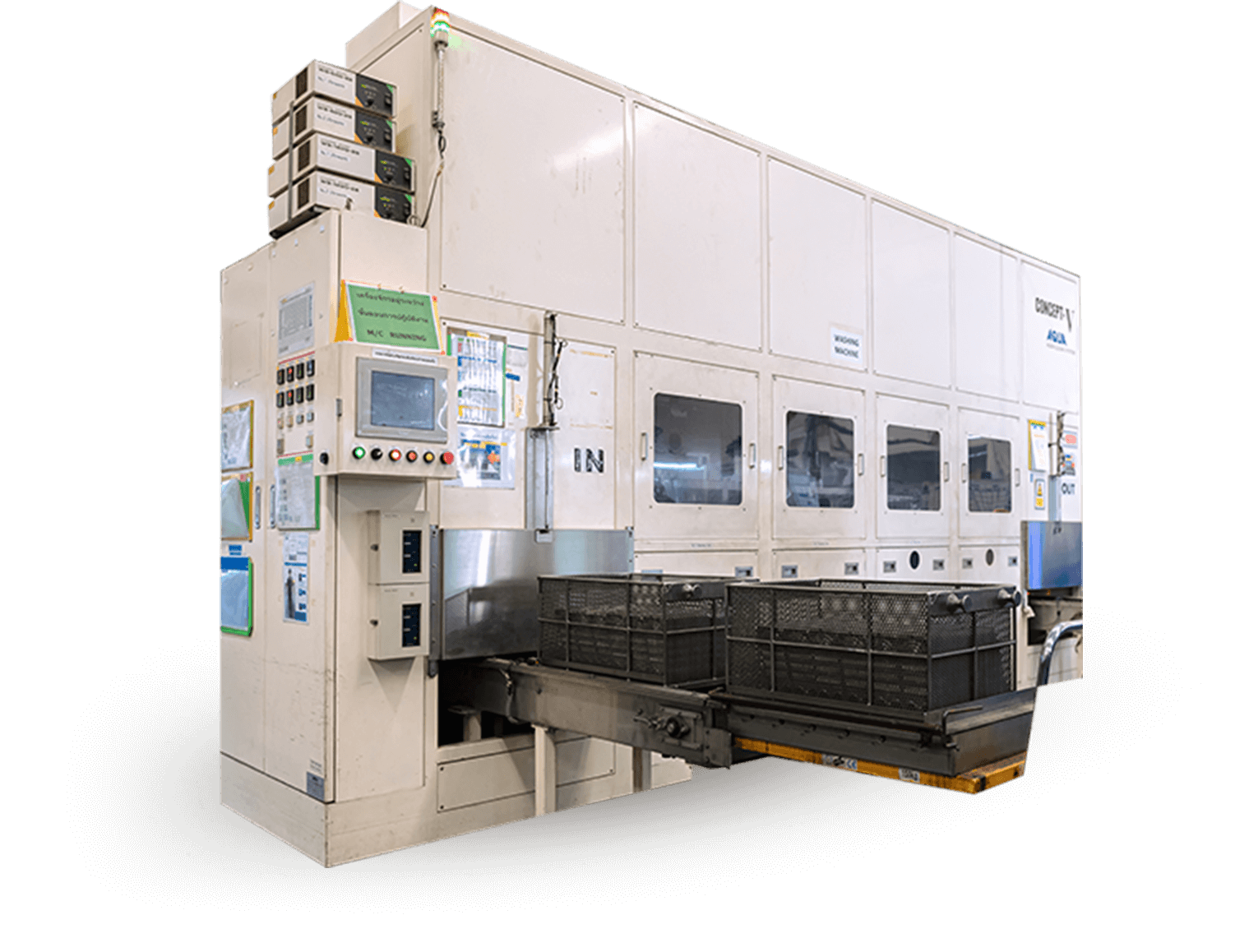

WASHING MACHINE

ULTRASONIC WASHING MACHINE (4 tanks)

Environmentally friendly cleaning machine

SECONDARY PROCESS MACHINE

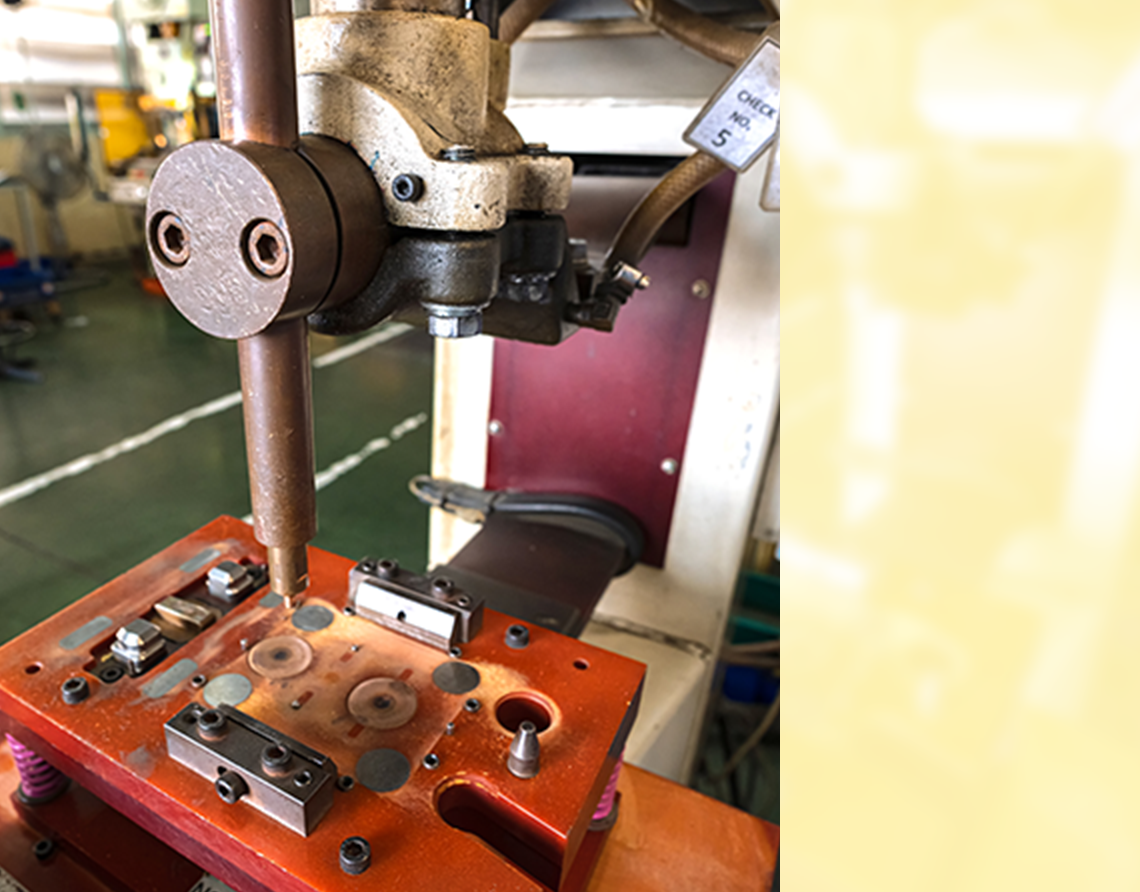

SPOT WELDING MACHINE

Secondary processing ass'y parts

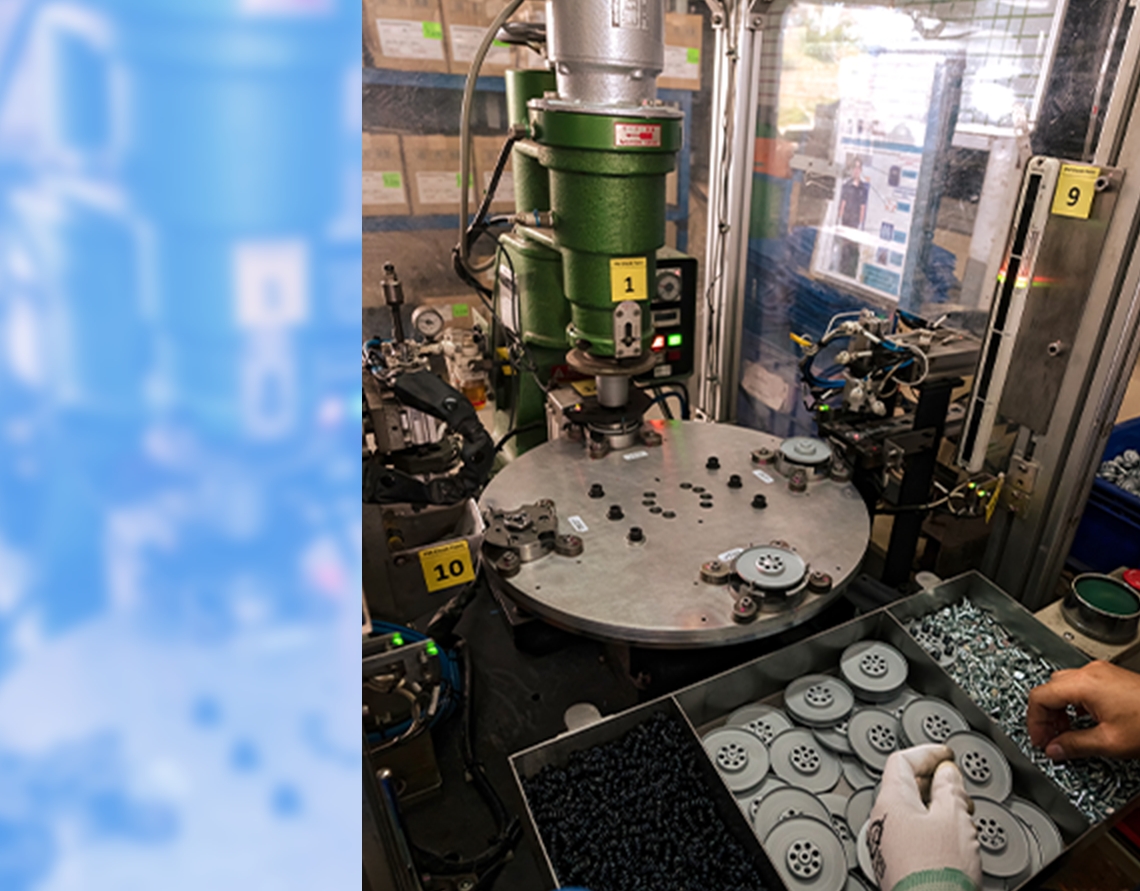

RIVET MACHINE

Secondary processing ass'y process

INSPECTION MACHINE

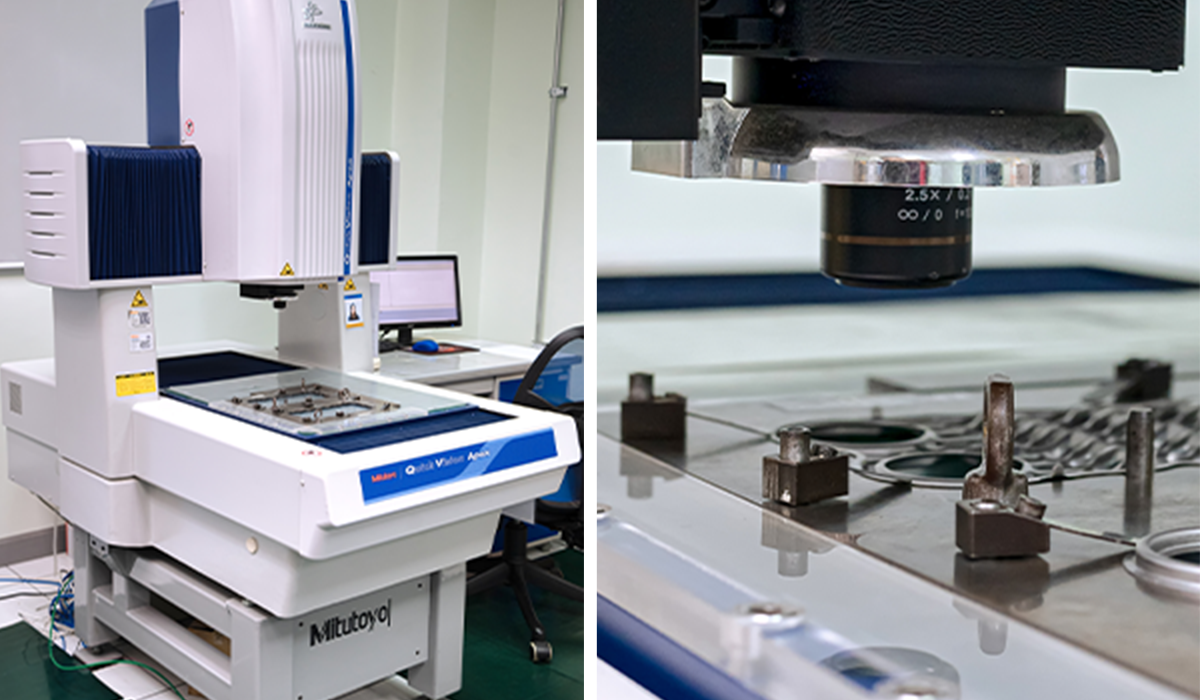

QUICK VISION

CNC VISION MEASURING SYSTEM (QV-404)

Maker : Mitutoyo

Specification : CNC SYSTEM

Range : X-Axis = 400 mm, Y-Axis = 400 mm, Z-Axis = 250 mm

Resolution / Scale unit : 0.1 µm /reflective-type linear encoder

Speed M/C : 400 mm / sec

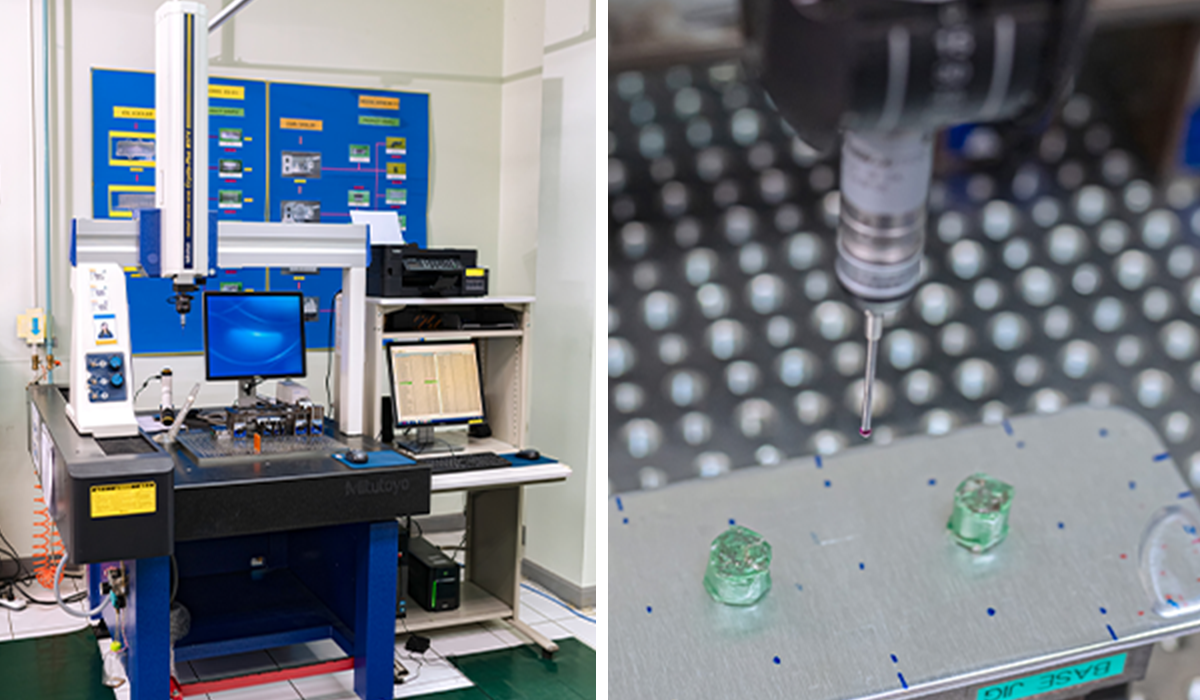

COORDINATE MEASURING MACHINE (CMM)

CRYSTA-PLUS M574

Maker : Mitutoyo

Specification : Touch probe & Camera CF 20X

Range : X-Axis = 500 mm, Y-Axis = 700 mm, Z-Axis = 400 mm

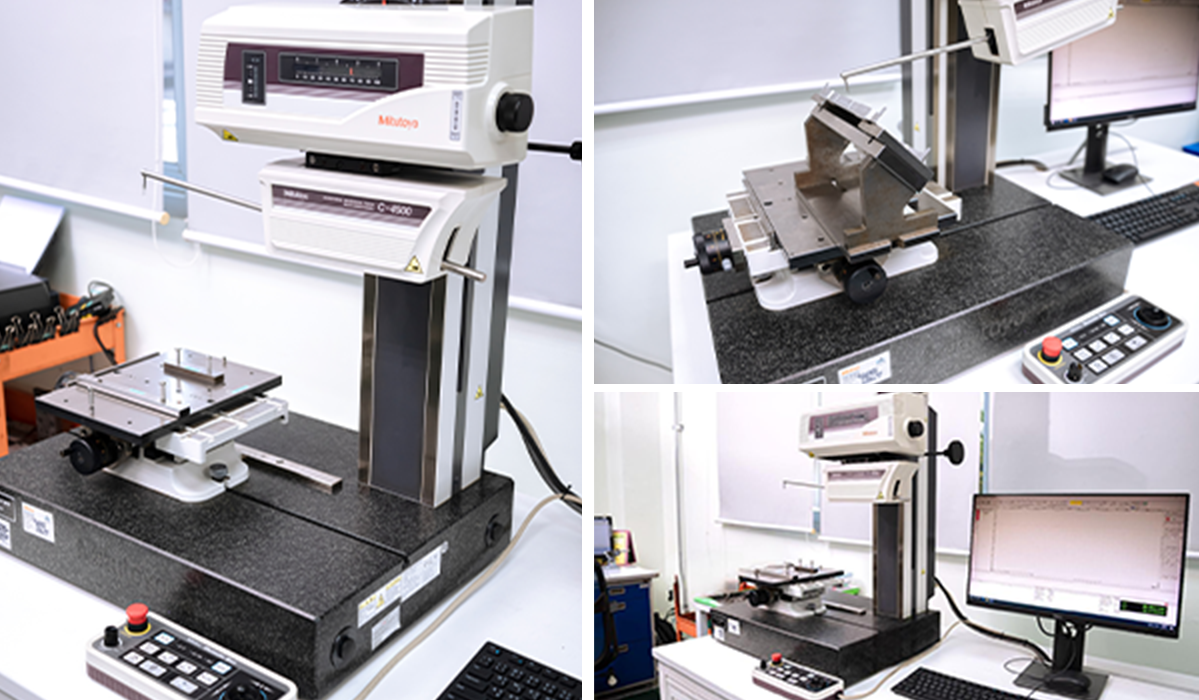

CONTOUR MEASURING INSTRUMENTS

CV-4500 S4 E MM

Maker : Mitutoyo

Specification : High-precision arc scale

Range : X Axis Measuring range = 100 mm, Z2-Axis (column) moving range = 300 mm, X Axis

Drive Axis Straightness = 0.8 µm / 100 mm

ISO 9001:2015 - Quality Management Systems

IATF 16949 - Automotive Quality Management System
